CO2 Recovery System

Our range of CO2 Recovery System is highly sophisticated and advanced in functioning. It requires low operation and maintenance cost yet ensures long working life. We have brewery based recover system that is used extensively in the production units of soft drinks, beer and food preservation. The system is offered in varied models in order to meet client's exact requirements.

The recovery system is specifically developed to store liquids and gases under high pressures. We design this as a fully automated recovery system, which is meant to recover the revert CO2 gas and has the capacity of handling large quantity of carbon dioxide every hour. High grade stainless steel is used in manufacturing the system that ensures complete protection from corrosion.

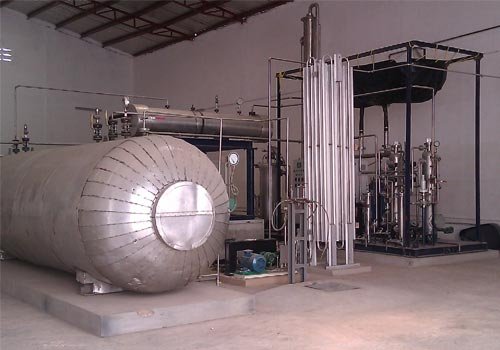

Brewery Based CO2 Recovery System is developed to be a fully automated plant with excellent capacity of handling large quantity of carbon dioxide every hour. This plant is wide in demand in breweries and other industrial sectors to recover revert CO2 gas. The construction of the plant is done using high grade stainless steel for no risk of damage due to corrosion. The plant has the capacity to produce highest and purest quality of liquid carbon dioxide using only low concentration of solvent.

• Process meets international food grade quality standards
• Stainless steel construction
• Fully automatic operation
• Automatic drain trap
• Compact in design
• Easy installation
• Low maintenance and operation cost
• V section belt drive
• High strength cast iron crankcase
• PLC system for controlling and monitoring system operation
• Screen printout of status and alarms

• From the fermenters, the raw gas produced enters into the foam trap in which the foam is removed
• There is a series of scrubbing systems into the gas is pushed using booster blower
• The chain of scrubbing system includes pre-water scrubber, KMnO₄ scrubber with dosing facilities
• In this system, water is used to wash CO₂ gas properly
• After this, buffering is done of the raw gas in a vessel
• The gas is then fed into the two-stage CO₂ compressor in which it is compressed up to a desired pressure
• Dual tower activated carbon filter is used to remove odor of the gas completely
• The raw gas passes through high-pressure pre-cooler, dual tower CO₂ dryer, liquefaction system, and then into NOx removal tower
• At the end, the liquid enters directly in the storage tank where it is stored for a particular period of time
